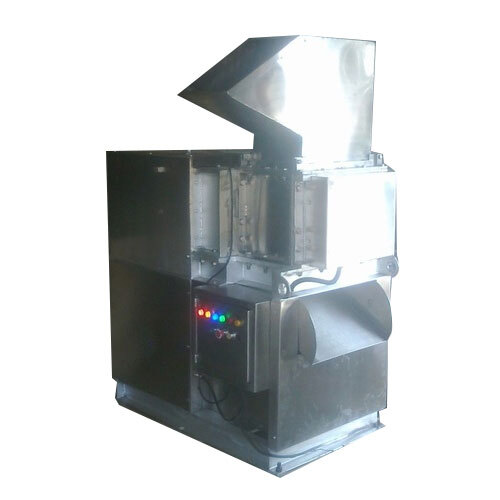

Heavy Duty Industrial Metal Shredder

Heavy Duty Industrial Metal Shredder
Heavy Duty Industrial Metal Shredder
Send Inquiry
Product Code : SM HD
Brand Name : AMEY ENGINEERS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • unit
  • Price Range
  • 700000.00 - 1500000.00 INR
Product Specifications
  • Type
  • Metal shredder
  • Use
  • Shredding all sorts of scrap metal objects, sheets etc.
  • Cutter Type
  • Regular roll, Toothed roll, Milled type
  • Cut Size
  • 12 - 24 mm or custom size
  • Start
  • Star- Delta starter, Auto-reverse panel
  • Auto-Stop
  • Available
  • Motor Type
  • 3-phase foot mounted induction motor, IP rated
  • Bin Capacity
  • 150-200 Liter (L)
  • Noise Level
  • <70 db
  • Safety System
  • Emergency stop, Overload Protection
  • Dimension(L*W*H)
  • 1300 x 1100 x 1700 to 1800 x 1100 x 1700 Millimeter (mm)
  • Weight
  • 1200 to 2000 Kilograms (kg)
Product Description

Various types of metal wastes are generated everyday, from households to large industries and all such scrap metal wastes must be first shredded to reduce their form and ensure efficiency during further processes like recovery and recycling.

Amey Engineers offers heavy duty SM HD range of dual and four shaft shredders for shredding all types of metal wastes. The types  of metal wastes that can be shredded by SM HD series shredders include scrap sheet metal waste from industrial fabrication works, scrap plates (upto 4 mm thickness), scrap metal roofing sheets (M.S., AL, or asbestos), aluminium bales, all types of e-wastes, household metallic items like key-chains, pens, wrist watches etc, food cans, beverage cans, paint tins and other aluminium and tin-plated steel cans, all types of utensils (of M.S., S.S., AL, Brass), and other scrap metal wastes.

SM HD series of shredders come with 3 phase IP rated TEFC Induction motors ranging from 25 hp to 120 hp. These motors are from reputed OEM's like SIEMENS, ABB, CG, Bharat Bijlee.  Amey Engineers uses in-house designed high safety factor multi-stage reduction gearbox for velocity reduction and torque transmission for these shredders. Such design ensures long service life of gears.  Drive shafts and cutters are  made  from special alloy steel and cutters come with Milled and multi-point toothed roll configurations. Standard feed widths are from 310 mm to 810 mm however  for custom models, even higher feed widths(greater than 1 meter) can be provided according to the size of fed material.  Throughput obtained can be upto 10 tonnes/hr depending on the type of feed and rate of feed input.

Custom arrangements like extended feed hoppers, different hopper types, automatic feeding system, discharge conveyor system, dust separator arrangement etc can be provided.  Other features include  extremely sturdy base frame construction, easy servicing, low maintenance, easy installation (no extra foundation is required) and operator safe design.  SM HD series of shredders are available in M.S. or S.S. MoC.   Standard models include: SM 300 HD, SM 400 HD, SM 600 HD, SM 800 HD. (High configuration make-to-order models are also available as per customer's requirements).

Trade Information
  • FOB Port
  • Mumbai
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C), Days after Acceptance (DA), Cheque, Cash in Advance (CID), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • Supply Ability
  • 30 Per Month
  • Delivery Time
  • 4 Week
  • Packaging Details
  • Standard export wooden packaging or as per customer's request.
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • Company Certifications:- MSME (GoI) Udyog Aadhar No.:- MH33B0009887 Import Exporter code:- 0306091216 MSME (GoI) Entrepreneurs Memorandum No.:- 27-021-12-03228-Part II
