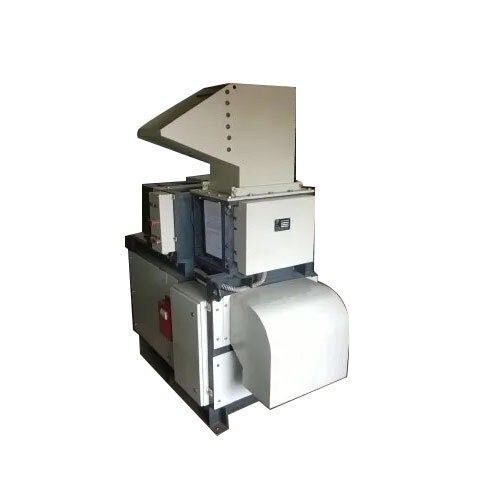

Scrap sheet metal shredder

Scrap sheet metal shredder
Scrap sheet metal shredder
Send Inquiry
Product Code : SM, SM HD series
Brand Name : AMEY ENGINEERS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • unit
  • Price Range
  • 518000.00 - 1500000.00 INR
Product Specifications
  • Type
  • Metal shredder
  • Use
  • Shredding scrap sheet metal
  • Cutter Type
  • Regular roll, Toothed roll, Milled type
  • Cut Size
  • 12 - 24 mm or custom size
  • Start
  • Star- Delta starter, Auto-reverse panel
  • Auto-Stop
  • Available
  • Motor Type
  • 3-phase foot mounted induction motor, IP rated
  • Bin Capacity
  • 150-180 Liter (L)
  • Noise Level
  • <70 db
  • Safety System
  • Emergency stop, Overload Protection
  • Dimension(L*W*H)
  • 1100 x 1100 x 1700 to 1800 x 1100 x 1700 Millimeter (mm)
  • Weight
  • 1200 to 2000 Kilograms (kg)
Product Description

Sheet metal is metal formed by an industrial process into thin, flat pieces. Sheet metal is one of the fundamental forms used in metal-working and countless everyday objects are fabricated from sheet metal. Sheet metals are used in wide range of manufacturing industries. Naturally, a considerable amount of metal sheet waste is generated all over the world every year. Sheet metal wastes are generally shredded prior to recycling and recovery.

Amey Engineers offers robust SM and SM HD range of heavy duty dual and four shaft shredders ideal for shredding scrap metal sheets and are suitable for continuous heavy duty operation. SM and SM HD series of shredders can handle sheet metal scrap of materials like mild steel, aluminium, S.S, tin. Scrap Sheet metals upto 3.5 mm thickness can be shredded.

Basically SM and SM HD series of shredders are offered in four standard models each, however customized models as per customer's requirements are also available.  Some of the features of SM and SM HD series of shredders are as below:-

 Shredder Series SM SM HD
 Drive Motor  15 hp to 40 hp, 3-phase TEFC induction motor, IP rated 25 hp to 120 hp, 3 phase TEFC induction motor, IP rated
 Feed Widths 310 mm to 810 mm 310 mm to 810 mm
 Throughput 1 ton/hr to 5 ton/hr 5 ton/hr to 10 ton/hr

Standard Models*

SM 300, SM 400, SM 600, SM 800

SM 300 HD, SM 400 HD, SM 600 HD, SM 800 HD

*Custom shredder models with higher feed widths and throughput are also available.

 SM and SM HD shredders come with a high safety factor gearbox with multi-stage reduction that ensures smooth torque delivery and long service life of gears. Cutters used are of alloy steel and use milled and multi point tooth configurations. Drive shafts are too of alloy steel and duly toughened.  Other features include sturdy base frame construction, easy servicing, low maintenance, operator safe design, easy installation (no extra foundation is required).

Optional configurations like auto-feeding system, discharge conveyor arrangement, dust separator arrangement can also be provided as per customer's requirement. SM and SM HD series of shredders are available in M.S. or S.S. MoC.











Trade Information
  • FOB Port
  • Mumbai
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C), Days after Acceptance (DA), Cheque, Cash in Advance (CID), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • Supply Ability
  • 20 Per Month
  • Delivery Time
  • 4 Week
  • Packaging Details
  • Standard export wooden packaging or as per customer's request.
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • Company Certifications:- MSME (GoI) Udyog Aadhar No.:- MH33B0009887 Import Exporter code:- 0306091216 MSME (GoI) Entrepreneurs Memorandum No.:- 27-021-12-03228-Part II
