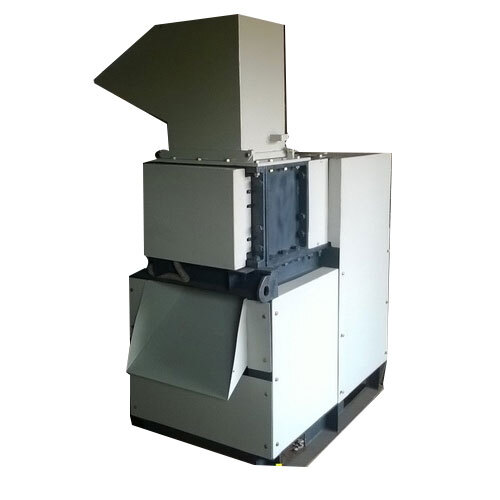

Heavy duty PVC, PVDC Roll shredder

Heavy duty PVC, PVDC Roll shredder
Heavy duty PVC, PVDC Roll shredder
Send Inquiry
Product Code : SM HD
Brand Name : AMEY ENGINEERS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • unit
  • Price Range
  • 700000.00 - 1500000.00 INR
Product Specifications
  • Type
  • Sherdder machine
  • Use
  • Shredding PVC/PVDC rolls
  • Cutter Type
  • Regular roll, Toothed roll, Milled type
  • Cut Size
  • 12, 24 mm
  • Start
  • Star- Delta starter, Auto-reverse panel
  • Auto-Stop
  • Available
  • Motor Type
  • 3-phase foot mounted induction motor, IP rated
  • Bin Capacity
  • 150 Liter (L)
  • Noise Level
  • <70 db
  • Safety System
  • Emergency stop, Overload Protection
  • Dimension(L*W*H)
  • 1300 x 1100 x 1700 to 1800 x 1100 x 1700 Millimeter (mm)
  • Weight
  • 1500 to 2000 Kilograms (kg)
Product Description

PVC and PVDC rolls are widely used for packaging purposes and are used by various industries like pharma, foods, packaging etc. In case of rejection, the PVC/ PVDC rolls must be destroyed before being scrapped or recycled to avoid unauthorized use/ misuse.

SM HD series of heavy duty shredders from Amey Engineers are suitable for shredding such rejected PVC/PVDC whole rolls prior to their further processing. SM HD series of shredders come in 3 phase IP rated TEFC induction motors ranging from 25 hp to 120 hp and uses AMEY-make inhouse designed  high safety factor gearbox for velocity reduction and torque transmission. SM HD shredders are equipped with case hardened alloy steel cutters of 270 mm diameter and come in various cutter-tooth configurations. Linear cutting speed is around 39 m/min.  Throughput of the shredder is between 300 to 1000 kg/hr. (For custom models, even higher throughput is available).

Optional accessories include dust separator arrangement, discharge conveyor arrangement, various feed hopper configurations. Shredders available in M.S. or S.S. MoC.

Other features include: Sturdy base frame construction, easy servicing, low maintenance, easy shredder installation (no extra foundation is required), Operator safe design.

Standard model listing for this range: SM 300 HD, SM 400 HD, SM 600 HD, SM 800 HD.  (Custom SM HD models also available).

Note:- Instead of shredding whole PVC/ PVDC roll, these can also be mounted on spool and feed into the shredder as a continuous film; and in such case, more  economical PS H and SM series of shredders are suitable.

Video link for PVC/ PVDC shredder:-

https://www.youtube.com/watch?v=WkVz6WP_QgM



Trade Information
  • FOB Port
  • Mumbai
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C), Days after Acceptance (DA), Cheque, Cash in Advance (CID), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • Supply Ability
  • 20 Per Month
  • Delivery Time
  • 4 Week
  • Packaging Details
  • Standard export wooden packaging or as per customer's request.
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • Company Certifications:- MSME (GoI) Udyog Aadhar No.:- MH33B0009887 Import Exporter code:- 0306091216 MSME (GoI) Entrepreneurs Memorandum No.:- 27-021-12-03228-Part II
